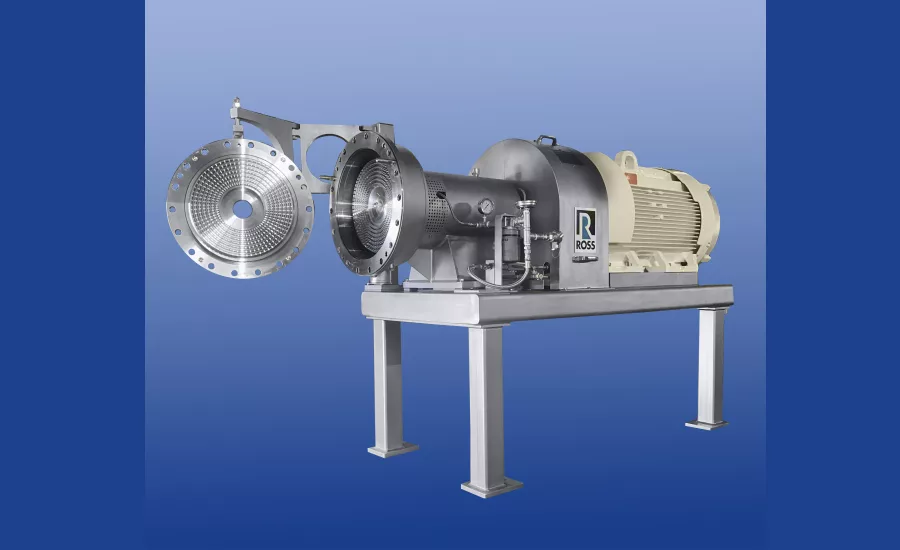

The ROSS Inline Ultra High Shear Sanitary Mixer Model HSM-715XSUHD-250 is designed to deliver dispersion, emulsification, and homogenization at high throughput. Featuring the patented X-Series rotor/stator in type AL-6XN stainless steel, this mixer takes product through the center of the stator and moves it outward through radial channels in the rows of concentric rotor/stator teeth. The combination of high tip speed and extremely close tolerances between the interlocking channels subjects the product to intense shear in every pass.

Designed for continuous operation the HSM-715XSUHD-250 is driven by a 250 HP washdown duty inverter-duty motor and equipped with heavy-duty tapered roller bearings. Its mixing chamber can withstand 150 psig at 250°F and features a stainless steel jacket for heating/cooling. This model is CIP compliant, with the back of the mixing chamber relieved to promote very thorough cleaning around the seal area. With its ability to produce top-quality dispersions, suspensions, and emulsions with uniform size distributions, this versatile and easy-to-clean mixer is ideal for various industries such as food, cosmetics, pharmaceuticals, chemicals, adhesives, and composites manufacturing.

The HSM-715XSUHD-250 is supplied with a NEMA 12 pre-engineered control panel.

To learn more about the Inline Ultra High Shear Mixers and other ROSS Equipment, visit mixers.com.
