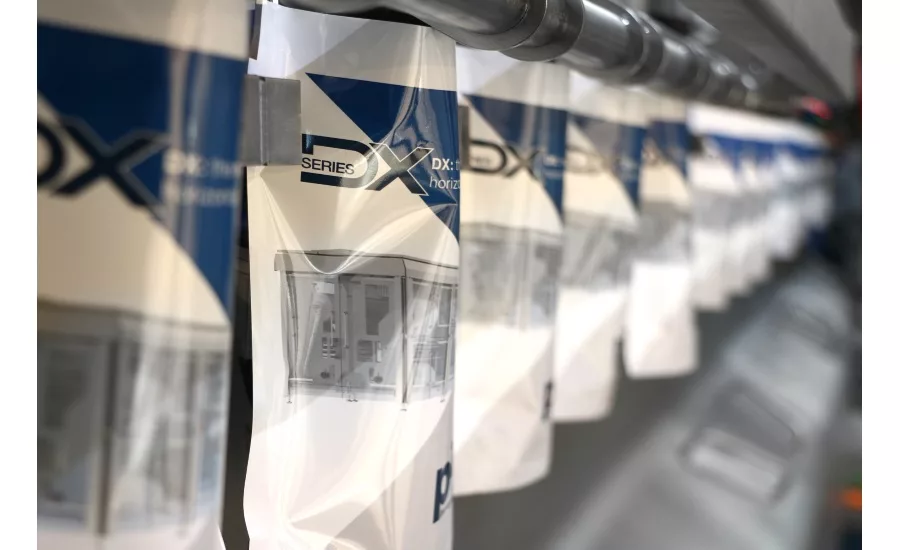

PFM DX-series stand-up pouch machine

Company: PFM Packaging Machinery

Equipment Snapshot: Until now, pouch machines have either been capable of producing a variety of pouch formats but limited to speeds of 50-100 pouches/minute, or fast with a fixed format. That is all set to change with the introduction of the new PFM DX series launched at Interpack 2017 in Düsseldorf.

The key to the machine’s combination of very high speed and flexibility is the integration of the XTS (eXtended Transport System) from Beckhoff Automation. This has eliminated the complex mechanisms and adjustments normally required to change pouch format. Any format within the machine’s capability can be programmed then selected from the HMI and changes in pouch transport are made automatically.

The system also enables groups of pouches to be buffered, tripling available filling time and maximising the DX’s real production speed. Intermittent motion is maintained so there is nothing to learn about product filling when stepping up from traditional machines. Liquid applications gain from controlled movement, minimizing the “wave” effect in the pouch.

The XTS transport is complemented by PFM’s automated format change in the pouch forming module, a much-loved feature of their existing D-Series machines. The DX can produce a wide variety of pouch styles: 3 or 4 side seal, stand-up and shaped pouches, the same machine can even be equipped with regular knives and full-shape dies which can be selected from the HMI. The usual pouch options are all available: zip, valves, tear notches, hang holes, inert gas etc.

Several models are available with maximum format width up to 9.45” (240mm).

The all stainless-steel portal style frame of the DX delivers benefits to all users in terms of hygiene and accessibility with a washable filling area as standard.
