Company: Material Transfer

Website: www.materialtransfer.com

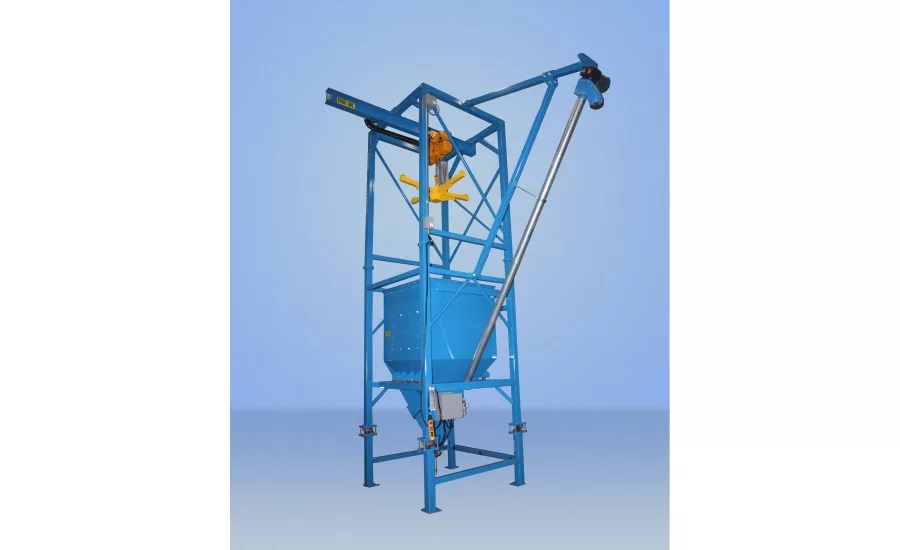

Equipment Snapshot: Material Transfer recently introduced its patented MATERIAL MASTER BULK BAG DISCHARGING SYSTEM with bag piercing knives provide for the discharge of materials from bulk bags with or without an outlet spout. System utilizes a 2-ton chain hoist to lift the bulk bag into the carbon steel discharge hopper where a static two angle bag piercing knife assembly empties bulk bags for a complete and efficient discharge of materials. Hopper features a full perimeter dust plenum with dust take off stub for product dust control. System features a rigid screw conveyor to transfer materials into the customer’s existing process.  A stainless steel load cell package provides loss-in-weight weighing capabilities.

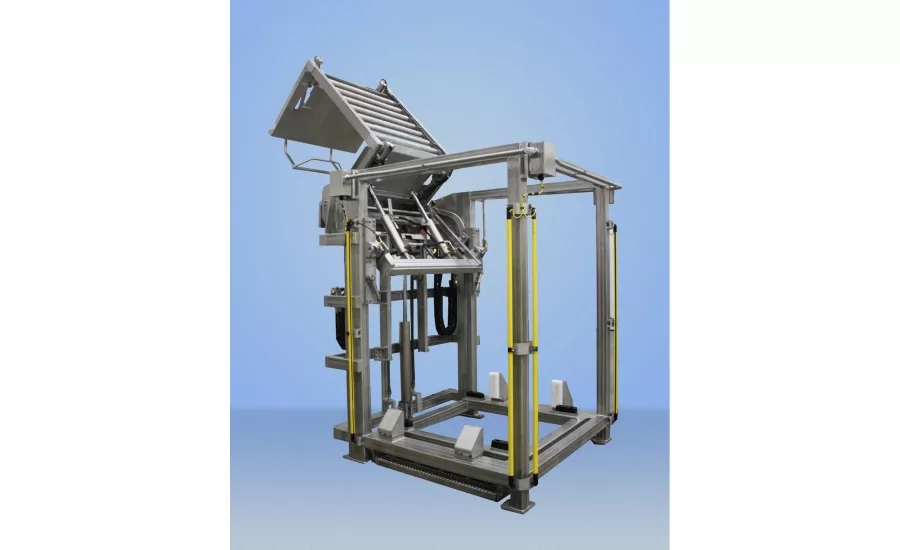

The company also introduced a side load hydraulic lift and dump container dumper. Unit safely discharges containers of free-flowing material into an existing process at 81” above floor level. A stainless steel sanitary design, provides a clean operation designed for operating within food processing environments. System utilizes a two-speed hydraulic system which provides excellent rotational control and extended equipment life.

Unit features a custom container and pallet retention system, automated controls, and three (3) sided safety light curtain guarding package for safe and efficient operation. MTS exclusive lifting assembly package provides low clearance container rotation.

Available with discharge heights up to 40’, rotation to 180°, for any size drum or container. Units are custom designed for your application requirements.
