Company: Material Transfer

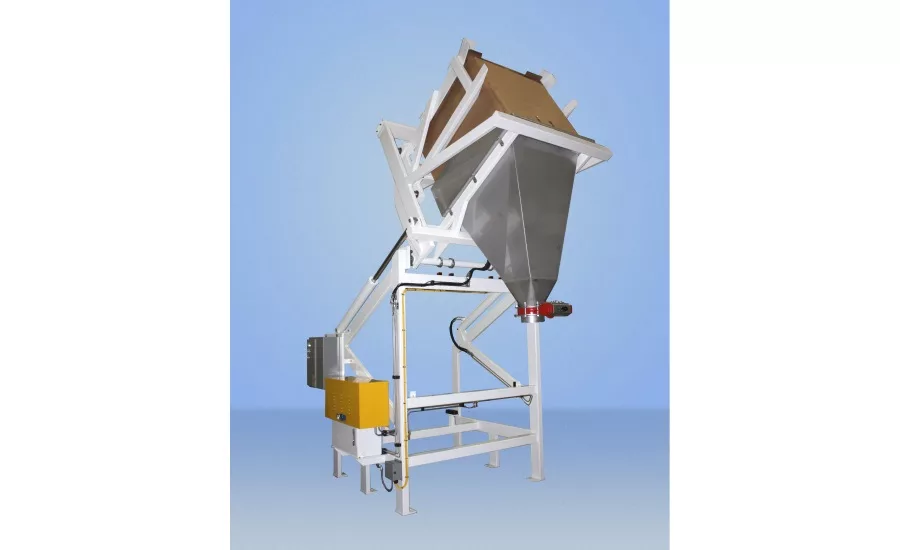

Equipment Snapshot: Unit discharges containers of food product into an existing hopper at 72” above floor level. Unit features heavy wall, tubular carbon steel construction with continuous welds. Unit includes a 304-2B stainless steel pour hood with continuous TIG welds, polished smooth. Pour hood discharge outlet includes an air actuated butterfly valve with a nylon 11 coated disc and a food grade EPDM seat.

System is driven by a 5 GPM premium hydraulic pump for a smooth, reliable operation. Hydraulic system filled with FDA/USDA approved food grade hydraulic oil and lubricants.

Carbon steel structural components finished with a FDA Coropoxy Polyamide paint finish, designed for use in Food and Beverage processing facilities.

Units are custom designed for your requirements with discharge heights to 40’, for any size or weight container.
