Company: Triangle Package Machinery Company

Website: www.trianglepackage.com

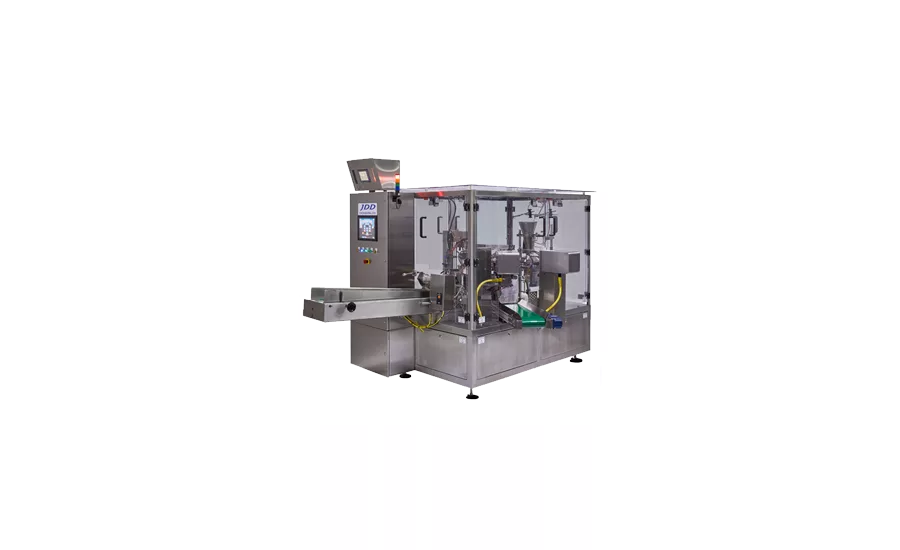

Equipment Snapshot: The Triangle/JDD Rotary Pouch Machine is an ideal solution for food packagers and others looking for an automated method to fill and seal pre-made pouches. The rotary pouch filler is designed to fill and seal Doy bags, 3-sided seal, flat and Stand-Up Pouches (SUP), as well as zippered bags, at speeds up to 50 pouches per minute.

The rotary pouch filler is ideal for a variety of markets, including: granola, snacks, confectionery, popcorn, dried fruit, nuts, powders and baking mixes, beef jerky and more.

Benefits:

• Auto stop to fill. Bags not opened will not be filled, which saves wasted product. No fill, no seal feature allows unopened bags to be re-used.
• Quick and easy changeover – store up to 48 different recipes in the HMI
• Easily switch between various film structures, including foil
• Stainless steel frame (painted cast frame enclosed)
• Easy to operate
• Superior service and support

Optional features:

• Nitrogen gas flush
• Staging gate
• Statistics backup on flash card ethernet
• Turnkey integration

Eight indexing stations:

• Tool-less changeover
• Horizontal infeed belt to handle all pouch styles
• Date coder included
• Top and bottom pouch opening with air assist
• Pouch shaker to assist with product settling
• Two sealing stations
• Pouch outfeed conveyor
